Separating cover and upholstery from seat pan
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

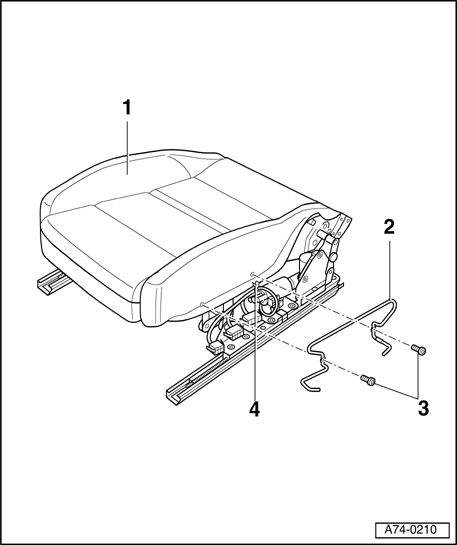

1 - Cover and upholstery
- Removal:
- Remove seat → Front power seats with memory, removing and installing .
- Remove side trim on sill side → Side panels on door sill side, removing and installing .
- Remove side trim on tunnel side → Side panels on door sill side, removing and installing .
- Remove the backrest → Front backrest, removing and installing .
- Remove drawer → Drawer, removing and installing .
- Remove bolts - 3 - (2x).
- Remove bracket - 2 -.
- Remove clip - 4 -.
2 - Support
3 - Screws, (2x)
4 - Clip

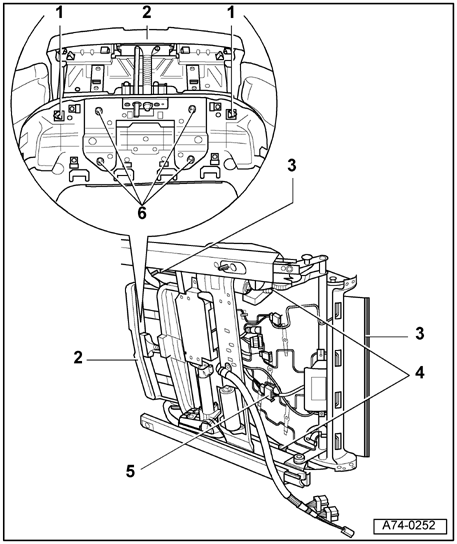

Fig 2: Identifying Clips, Seat Cushion Extension, Grip Channels, Seat Heater, Seat Cushion Extension & Nuts
1 - Clips (Qty. 2)
2 - Seat cushion extension
- Pry out grip channels - 3 - all around.
- Disengage grip channels - 4 - (2x) on underside of seat.
- Disconnect connector for seat heater - 5 -.
- Pull out seat cushion extension - 2 - completely.
- Remove nuts - 6 - (4x).
- Pry out seat cushion extension - 2 - at clips - 1 - (2x).
- Remove cover and upholstery.
- Installing:
Installation is reverse of removal.
- For vehicles with LATCH "Lower Anchor and Tethers for Children" bracket and new cover - 1 -, cover must be cut in at LATCH "Lower Anchor and Tethers for Children" bracket.
3 - Peripheral fastening strips
4 - Fastening strips (2x)
5 - Seat heating connector
6 - Nuts (4x)
