Separating cover and upholstery from backrest frame
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

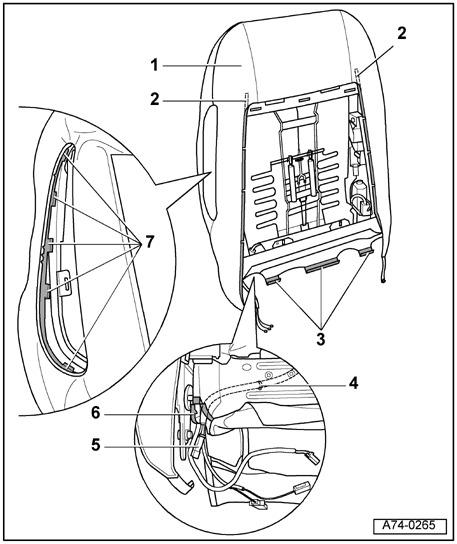

1 - Backrest
- Removal:
- Remove seat → Front power seats with memory, removing and installing .
- Remove the backrest → Front backrest, removing and installing .
- Remove headrest → Headrest with slide in locking mechanism, removing and installing .
- Remove headrest guides: Vehicles until 10.04 → Headrest guides, vehicles through 10.04, removing and installing , vehicles from 11.04 → Headrest guides, removing and installing - vehicles from 11.04 .
- Remove backrest cover panel → Backrest cover, removing and installing .
- Pry out lower grip channels - 3 - (3x).
- Disengage side grip channels - 2 - (2x).
- Remove backrest frame → Backrest frame, removing and installing .
- Remove cable guide - 6 -.
- Open cable tie - 4 -.
- Pull seat heater cable - 5 - up and out.
- Remove side airbag → Side airbags, servicing .
- Pry out plastic tabs - 7 - (5x).
- Remove upholstery with cover.
- Installing:
Installation is reverse of removal.
2 - Side fastening strips (2x)
3 - Lower fastening strips (3x)
4 - Cable tie
5 - Seat heating cable
6 - Cable guide
7 - Plastic tabs (Qty. 5)
