Center armrest, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

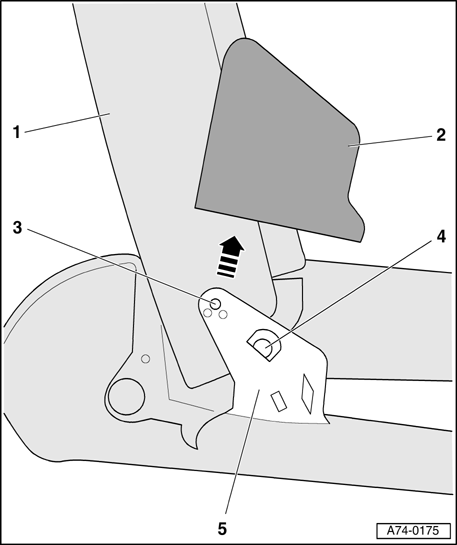

Fig 1: Center Armrest Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center armrest

Removal:

Remove cover - 2 - in direction of arrow.
Remove bolts - 3 -.
Remove pin - 4 - from hinge arm - 5 -.
Remove center armrest - 1 -.

Installing:

Installation is reverse of removal.

2 - Cover

3 - Screw

4 - Bolts

5 - Hinge arm

Fig 2: Removing Bearing Bushing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing bearing bushing

Press off bushing - 1 - using a flat-head screwdriver in - direction of arrow -.

2 - Backrest cover
