Electrical height adjuster on seats with bolted upper part of seat (older version), replacing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Older shoulder pin must be used.
- Older seat frame must be used.
- Older sail must be used on new height adjuster gearing.
- New microencapsulated bolts to secure the sail to the height adjuster gearing and to the seat rail are included in delivery.
- New nut to secure shoulder pin and plastic toothed segment are included in delivery.
- Move seat as far to front as possible.
- Remove side trim on sill side → Side trim (sill side), removing and installing .

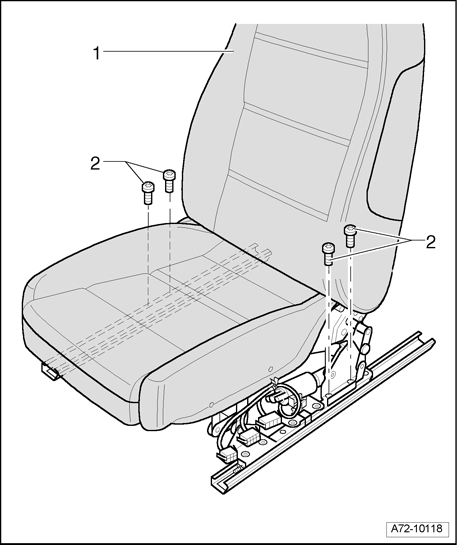

Fig 1: Electrical Height Adjuster On Seats With Bolted Upper Part Of Seat (Older Version), Replacing
1 - Seat
2 - Bolts for seat rail (microencapsulated)
- Remove two rear microencapsulated bolts - 2 - to seat rail on left and right.
- Loosen shoulder pin - 1 -, nut - 2 - and lever - 3 - on height adjuster gearing and remove shoulder pin - 1 -.
- Fold seat fully toward front.
- Remove height adjuster gearing.
- Remove both microencapsulated bolts - 1 - at sail to height adjuster gearing.
- Clean threaded holes on height adjuster gearing.
- Secure new height adjuster gearing to sail using both new microencapsulated bolts - 1 -.
NOTE:
- Threaded holes for screws must always be cleaned (for example, with thread cutter).
- If damaged, replace white plastic toothed segment.
- Carefully insert height adjuster gearing and make sure white plastic toothed segment is not damaged.
- Guide shoulder pin through height adjuster gearing, sail and drive lever and tighten new nut.
- Clean threaded holes in seat rail.
- Fold seat fully toward rear.
- Secure seat to seat rail using microencapsulated bolts supplied.
NOTE:
- Threaded holes for screws must always be cleaned (for example, with thread cutter).
