Seat with faulty control module or seat fore-aft adjustment motor, removing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1331
NOTE:
- If possible: Tilt seat up.
- Seat is shown without upholstery and without backrest in picture for the sake of a better illustration.

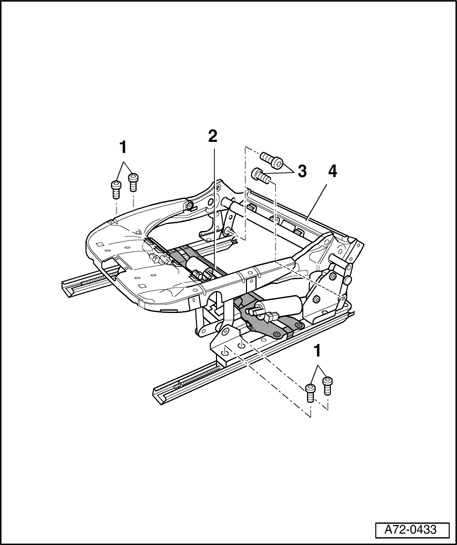

1 - Screws (4x)
- Tightening torque 17 Nm
2 - Motor mounting plate
3 - Screws, (2x)
- Tightening torque 19 Nm
4 - Seat pan upper frame
- Removal:
- Remove bolts - 3 - (2x).
- Fold seat all the way forward.
- Remove screws - 1 - (4x).
- Loosen wiring harness from motors and control module.
- With a second technician, remove backrest with seat pan from vehicle.
If control module is defective:
- Disconnect connector on seat fore-aft adjustment motor.
- Run seat fore/aft adjustment motor using an external power source until seat rail covered bolts are visible.
- Remove bolts.
- Remove control module → Control module, removing and installing .
- Installing:
Installation is reverse of removal.

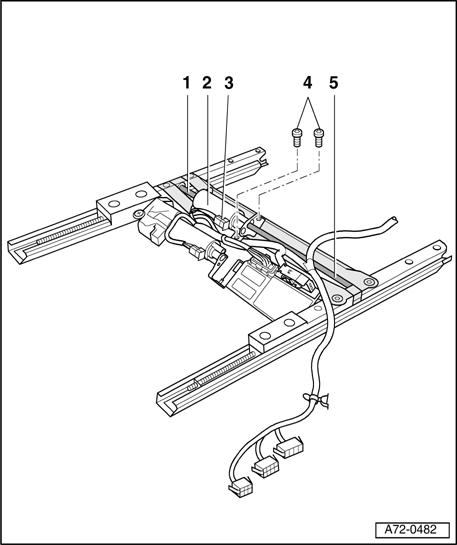

1 - Shaft
2 - Longitudinal seat adjustment motor
- Removal:
If longitudinal seat adjustment motor is defective:
- Remove bolts - 4 - (2x) at seat fore-aft adjustment motor.
- Disengage seat fore-aft adjustment motor - 2 - from both shafts - 1 - and - 5 -.
- Using a cordless drill and long shaft - 5 -, move both seat rails by sliding until the concealed bolts are visible.
- Remove bolts.
- Replace seat lower frame with fore-aft adjustment motor.
- Installing:
Installation is reverse of removal.
3 - Connector
4 - Screws, (2x)
5 - Shaft
