Assembly cover, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal and installation of assembly cover can be performed when seat is installed.

Removing

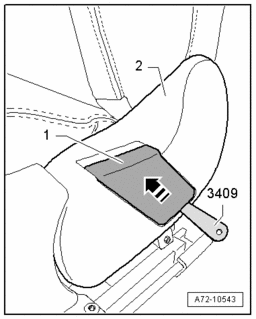

Fig 1: Assembly Cover, Removing/Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Position Trim Removal Wedge 3409 at bottom center of assembly cover - 1 -.
Remove assembly cover - 1 -.
Remove assembly cover - 1 - in - direction of arrow - from rear sill side trim - 2 -.

Installing

Installation is reverse of removal.
