Drivers Seat Height Adjustment Motor V245 or V246, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Removing
CAUTION:
- Observe safety precautions for work on airbags → Airbag safety precautions .
- Before handling airbag units (e.g. disconnecting electrical connector), the person handling it must "electrostatically discharge". This can be done by touching door striker, for example.
- Remove seat → Seat, removing and installing .
- Attach seat to Fixture For Seat Repair VAS 6136.
- Remove tunnel side trim → Sill side trim and assembly cover, removing and installing .
- Remove tunnel side trim panel → Tunnel side trim panel, removing and installing .
- Remove front backrest → Front backrest, removing and installing .

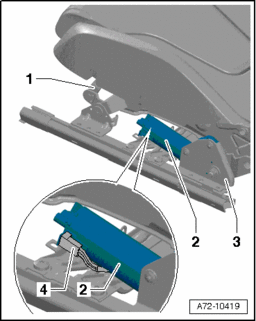

Fig 1: Disconnecting Electrical Connector On Drivers Seat Height Adjustment Motor V245 Or Front Passenger S Seat Height Adjustment Motor V246
- Disconnect electrical connector - 4 - on Drivers Seat Height Adjustment Motor V245 - 2 - or Front Passenger s Seat Height Adjustment Motor V246.
- Disconnect seat pan upper frame - 1 - from lower frame - 3 - → Seat pan, disassembling and assembling .
- Remove seat pan upper frame with cover and upholstery from lower frame.
Fig 2: Removing Drivers Seat Height Adjustment Motor V245 Or Front Passenger Seat Height Adjustment Motor V246 Toward Center Of Seat From Seat Pan Lower Frame
- Remove bolts - 2 -.
- Remove Drivers Seat Height Adjustment Motor V245 - 1 - or Front Passenger s Seat Height Adjustment Motor V246 toward center of seat from seat pan lower frame - 3 -.
Installing
Installation is reverse of removal. Observe the following when doing so:
CAUTION:
- Observe safety precautions for work on airbags → Airbag safety precautions .
- Before handling airbag units (e.g. disconnecting electrical connector), the person handling it must "electrostatically discharge". This can be done by touching door striker, for example.
Fig 3: Ensuring Clip And Plastic Toothed Segment Collar As Well As Locking Pins Are Inserted Correctly In Holes On Fitting
- Ensure clip - A - and plastic toothed segment collar - 2 - as well as locking pins - B arrows - are inserted correctly in holes on fitting - 1 -.
- Ensure plastic toothed segment - 2 - is clipped to fitting - 1 - correctly.
Plastic toothed segment collar - arrow C - must contact fitting - 1 - evenly.
- Ensure locking pins - A arrows - are inserted correctly in holes - B arrows - on link plate - 1 -.
NOTE:
- Ensure that electrical connections are pushed in as far as stop and engage with a click.
- Switch on ignition.
CAUTION:
Ignition must be on when connecting battery. If pyrotechnic components (e.g. airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. There must not be anyone inside the vehicle when connecting the battery.
- Connect battery ground wire with ignition switched on →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- If Airbag Malfunction Indicator Lamp (MIL) K75 indicates a fault after installation, DTC memory must be checked, deleted and checked again Vehicle Diagnosis, Testing and Information System VAS 5051B.
Tightening torques → Seat Height Adjustment Motor V245 or V246, assembly overview
