Supercharger, Securing To Engine/Transmission Holder For Leakage Test
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The seals on the support T40206/2 should seal off the openings inside the compressor housing during the leakage test.
Special tools and workshop equipment required
- Engine and Transmission Holder VAS 6095
Procedure
- Supercharger removed, refer to SUPERCHARGER .
-- Mount the T40206 with T40206/1 in the VAS 6095.

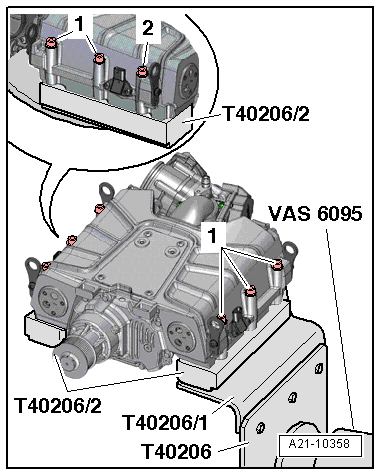

-- Secure the supercharger to the transmission holder as illustrated. Use the holes "1", "4", "9", "11" and "13" for the threaded connectors -1-.
-- Attach the support T40206/2 directly to the supercharger housing at the front and on the right side using the bolt -2-.

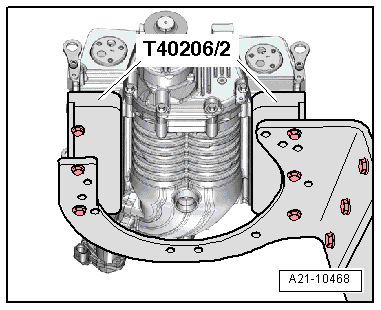

Support T40206/2 installed position:
- The seals on the support seal off the openings inside the compressor housing.
