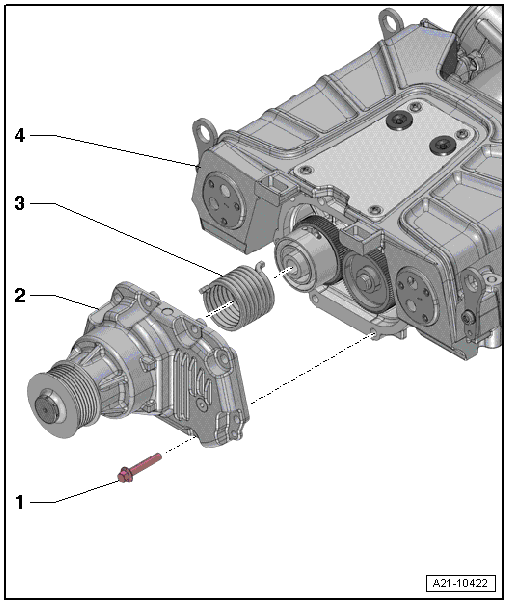

Drive Head Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 25 Nm
- Replace
- Self-locking
- Always clean the threaded holes with a thread tap before assembling
- Drive Head
- Removing and installing, refer to DRIVE HEAD AND DECOUPLING SPRING
- Decoupling Spring
- Removing and installing, refer to DRIVE HEAD AND DECOUPLING SPRING
- Supercharger Housing
