Windshield Height Adjustment: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

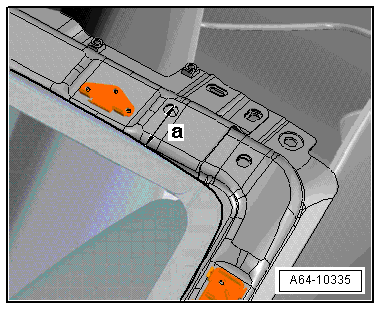

Fig 1: Identifying Distance From Edge Of Window To Left & Right Holes In Roof Frame, Dimension -A- = 43.5 Mm
-- Align the window glass -1- from side to side and adjust it to dimension -a- = 43.5 mm to the hole in the roof frame -2-.
-- Secure the window glass from sliding out using an adjusting wedge on the bottom edge of the glass.
-- Install the retaining strip for the seal and secure the window glass with adhesive tape.
