Side Window, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the side window mount. Refer to SIDE WINDOW MOUNTING PIECE, REMOVING AND INSTALLING .

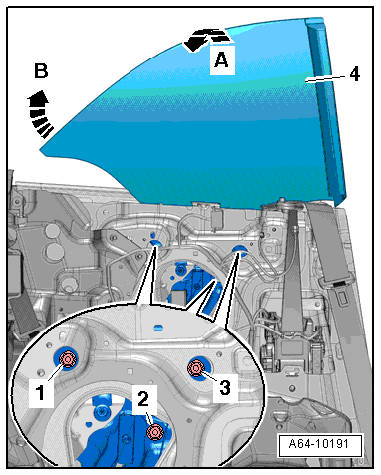

-- Lower the window far enough so that the nuts inside the inner side panel are visible and then remove them -1 through 3-.
-- Tilt the side window -4- into the passenger compartment -arrow A- until the threaded pins on the side window bracket disengage from the window regulator.
-- Move the side window to the rear and out of the opening in the body -arrow B-.
