Height Adjustment

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment dimensions, gap dimensions. Refer to SIDE WINDOW, ADJUSTING .

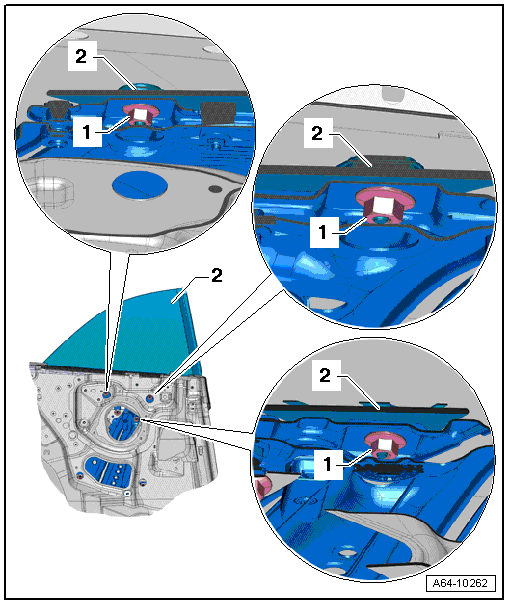

Fig 1: Identifying Height Adjustment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

- Adjusting - Side Window
- For positioning the upper edge of the side window -2- to the seal on the convertible top
- Accessible after removing the rear side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
  -- Loosen the nuts -1- and adjust the side window.
