Side Window Stop, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

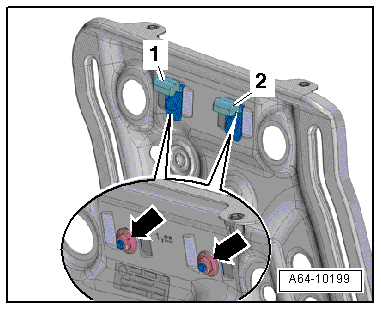

Fig 1: Removing Rear Side Window Stop
GWWA64-10199Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the window regulator. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .

-- Remove side window. Refer to SIDE WINDOW, REMOVING AND INSTALLING .

-- Remove the nuts -arrows- and remove the stops -1- and -2-.
