Overview - Window Shaft Strips

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

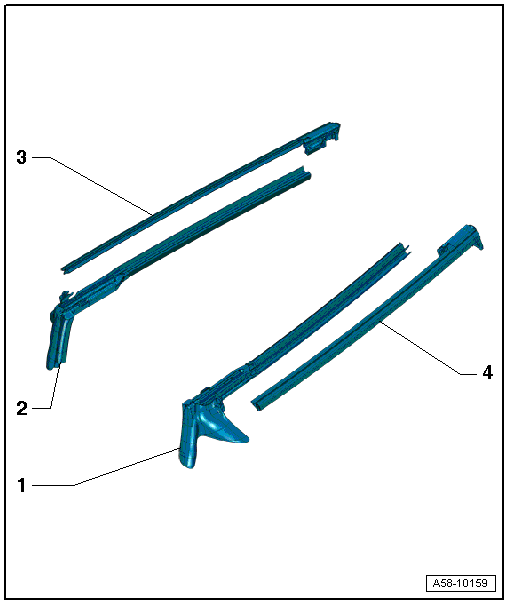

Fig 1: Exploded View Of Inner Window Shaft Strip & Outer/Inner Window Shaft Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Inner Window Shaft Strip
- Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Right Inner Window Shaft Strip
- Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Right Outer/Inner Window Shaft Strip
- Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Left Outer/Inner Window Shaft Strip
- Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
