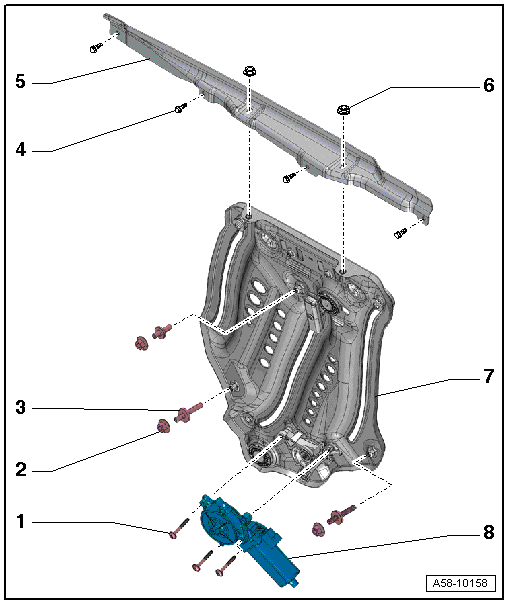

Overview - Window Regulator
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 3.5 Nm
- Be sure to use the correct bolt version. Refer to Fig 2
- Nut
- 20 Nm
- Double Bolt
- For adjusting the window regulator
- Bolt
- 8 Nm
- Mounting Piece
- For the side window
- Removing and installing. Refer to SIDE WINDOW MOUNTING PIECE, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Rear Window Regulator
- Left Rear Window Regulator Motor -V26-
- Right Rear Window Regulator Motor -V27-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .

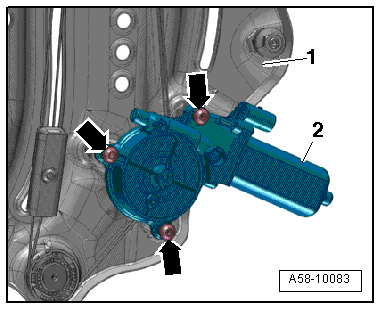

Be Sure to Use the Correct Version of the Bolt for the Window Regulator
CAUTION:
Danger of causing damage to the window regulator.
- Use self-tapping screws to attach the rear window regulator motor (included in the mounting kit) when replacing the window regulator.
- If a new window regulator motor is being installed, then use the standard screws (included in the mounting kit).
