Outer Window Shaft Strip, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

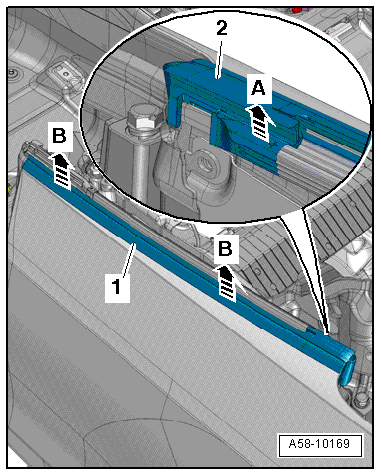

Fig 1: Identifying Outer/Inner Window Shaft Strip

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- "Open" the rear side window.

-- Remove the rear side trim panel. Refer to appropriate service information. .

-- Remove the inner window shaft strip -2- from the body seam -arrow A-.

-- Remove the outer window shaft strip -1- from the body seam -arrows B-.
