Outer Window Shaft Strip, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

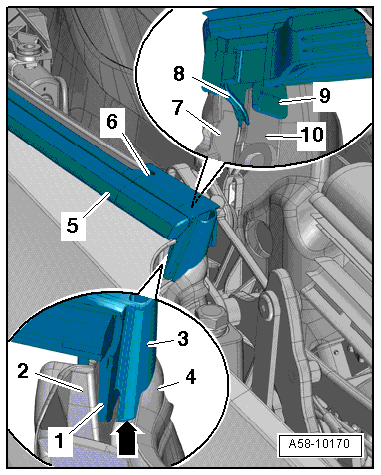

Fig 1: Identifying Inner & Outer Shaft Strip Removal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note The Following:

NOTE:

Water will get into the passenger compartment if the outer/inner window shaft strip and the convertible top compartment cover seal are not installed correctly.

-- Mount the outer window shaft strip -5- onto the body seam near the convertible top compartment.

The end -1- of the seal must touch the outside of the convertible top compartment cover seal -2-.
The water drain opening -3- must be in full contact with the inside of the convertible top compartment cover seal -4- -arrow-.

-- Mount the inner window shaft strip -6- on the side window mount.

The lug -9- on the inside of the window shaft strip must touch the outside of the window shaft strip -10- as illustrated.
The water drain channel -8- must touch the convertible top compartment cover seal completely -7-.

-- Install the rear side trim panel. Refer to appropriate service information. .
