Part Designations On The Convertible Top Frame
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

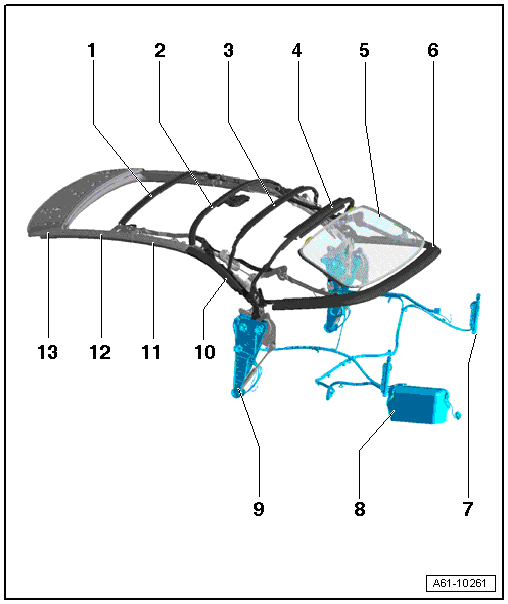

These parts designations are used in the description.
- Rail 1
- Rail 2
- Rail 3
- Rail 4
- Rear Window
- No replacement part
- Bracket
- Convertible Top Compartment Cover Hydraulic Cylinder
- Overview. Refer to COMPONENT LOCATION OVERVIEW - HYDRAULIC SYSTEM .
- ABS Hydraulic Pump
- Overview. Refer to COMPONENT LOCATION OVERVIEW - HYDRAULIC SYSTEM .
- Main Bearing
- Rear Main Guide
- Rear Roof Guide
- Front Roof Guide
- Front Rail
