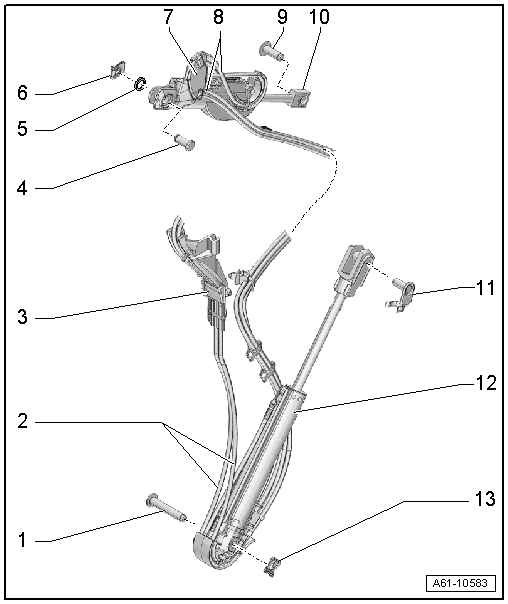

Hydraulic Cylinder For Convertible Top Control
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Pins
- Hydraulic Lines
- On the cylinder
- Removing and installing. Refer to HYDRAULIC LINE ON CYLINDER, REMOVING AND INSTALLING .
- Mount
- For the hydraulic lines
- Pins
- Spacer
- Note the installation position
- Clip
- Mount
- For the hydraulic lines
- Hydraulic Lines
- On the cylinder
- Removing and installing. Refer to HYDRAULIC LINE ON CYLINDER, REMOVING AND INSTALLING .
- Pins
- Hydraulic Cylinder for the Bracket
- Removing and installing. Refer to HYDRAULIC CYLINDER BRACKET, REMOVING AND INSTALLING .
- Mounting Pin
- With clip
- Convertible Top Drive Hydraulic Cylinder
- Removing and installing. Refer to CONVERTIBLE TOP DRIVE HYDRAULIC CYLINDER, REMOVING AND INSTALLING .
- Clip
