Right Side Of Vehicle

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

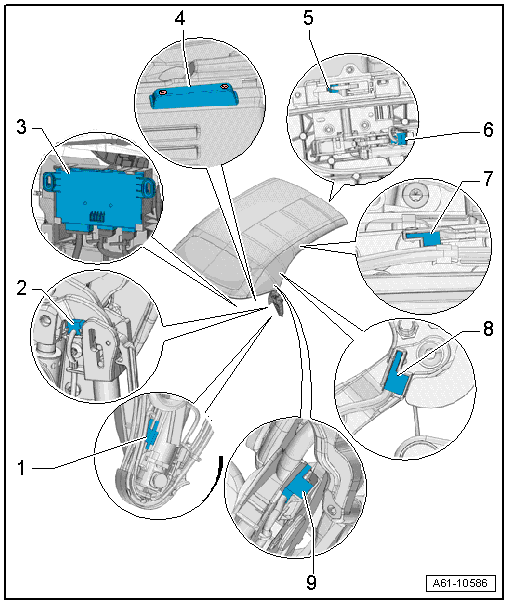

Fig 1: Identifying Control Module And Convertible Top Control Micro Switch Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Convertible Top Open Position Switch -F171-
Right Convertible Top Compartment Cover Switch -F291-
- Removing and installing. Refer to Right Convertible Top Compartment Cover Switch -F291-, REMOVING AND INSTALLING .
Convertible Top Control Module -J256-
- Removing and installing. Refer to Convertible Top Control Module -J256-, REMOVING AND INSTALLING .
Right Convertible Top Compartment Enclosure Switch -F403-
- Removing and Installing. Refer to CONVERTIBLE TOP COMPARTMENT
Right Convertible Top Closed Position Switch -F412-
Convertible Top Latch -Open- Switch -F294-
Convertible Top Front Closed Position Switch -F202-
Right Tensioning Bow Switch -F410-
Upper Tensioning Bow Switch -F408-
