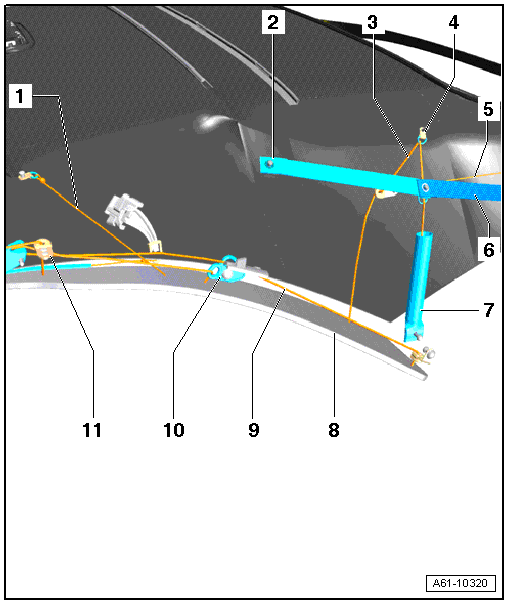

Rear Tension And Guide Cables
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Center Guide Cable
For C-pillar door
- Mounting Strap
- Tension Cable
For C-pillar door
- Guide Cable Diverting Eye
- Rear Window Control Tension Cable
- Mounting Strap
- Tension Cable Pull-Spring
- C-Pillar Door
- Not a replacement part, part of the convertible top headliner service kit
- Tension Cable
- Diverting Eye
- Center and rear guide cable on the C-pillar door
- Front Guiding Eye
