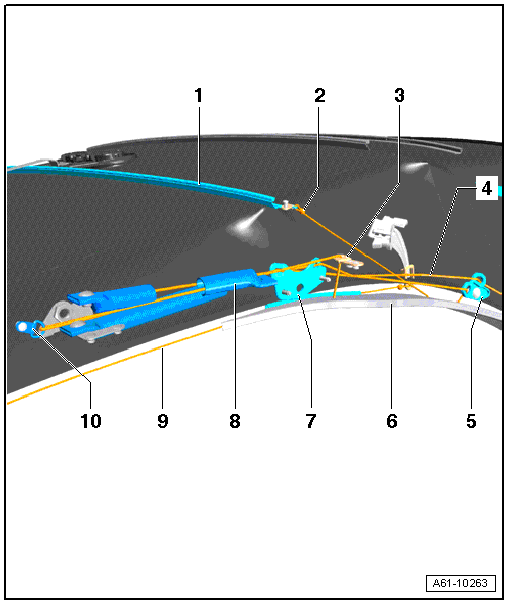

Front Tension And Guide Cables
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- "Rail 2"
- Center Guide Cable
- For C-pillar door
- Diverting Eye for Front Guide Cable
- On the C-pillar door near "rail 2"
- Rear Guide Cable
- For C-pillar door
- Diverting Eye For the Center Guide Cable
- Rear on the C-pillar door
- C-Pillar Door
- Front Guiding Eye
- Convertible Top Cover Tensioning Cable
- Front Diverting Eye
For C-pillar door guide cable
- Front Guiding Eye
