Convertible Top Headliner

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

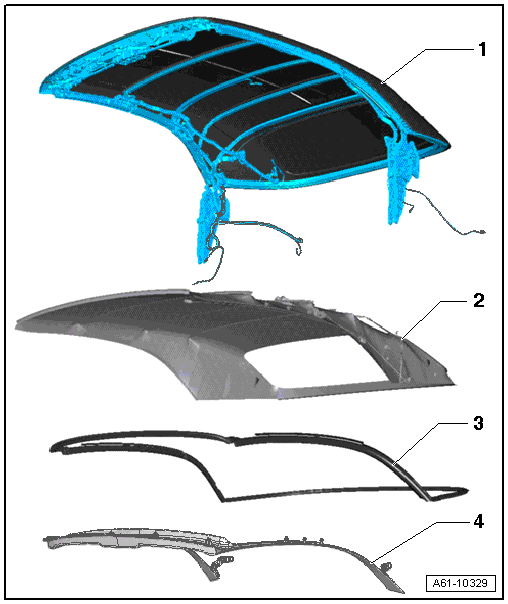

Fig 1: Identifying Headliner, Tension And Guide Cable Overview
GWWA61-10329Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Convertible Top Frame with Convertible Top Cover
  2. Convertible Top Headliner
  3. Convertible Top Seals
  4. Convertible Top Frame Trim
