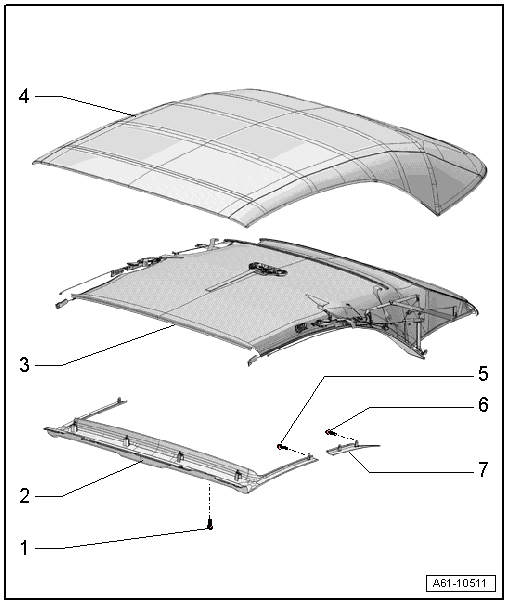

Convertible Top Cover, Convertible Top Headliner And Trim Panels
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 2.5 Nm
- Quantity: 2
- Front Trim Panel
- Removing and installing. Refer to FRONT TRIM PANEL, REMOVING AND INSTALLING .
- Convertible Top Headliner
- Overview. Refer to OVERVIEW - CONVERTIBLE TOP .
- Convertible Top Cover
- Removing and installing. Refer to CONVERTIBLE TOP COVER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Bolt
- 3 Nm
- Quantity: 2
- Center Trim Panel
- Removing and installing. Refer to CENTER TRIM PANEL, REMOVING AND INSTALLING .
