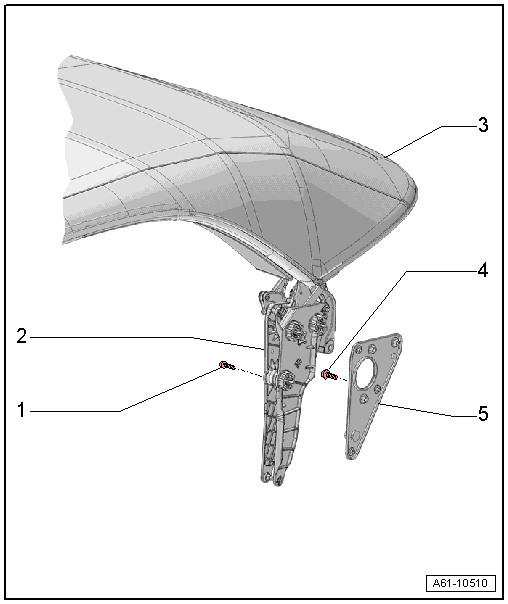

Convertible Top And Main Bearing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 30 Nm
- Quantity: 3
- Convertible Top Main Bearing
- Convertible Top
- Removing and installing. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .
- Bolt
- 15 Nm
- Quantity: 3
- Retaining PlateCAUTION:
Leaks may occur if the convertible top is not in its originally installed position.
- Do not loosen the retaining plate as it cannot be adjusted with workshop tools.
