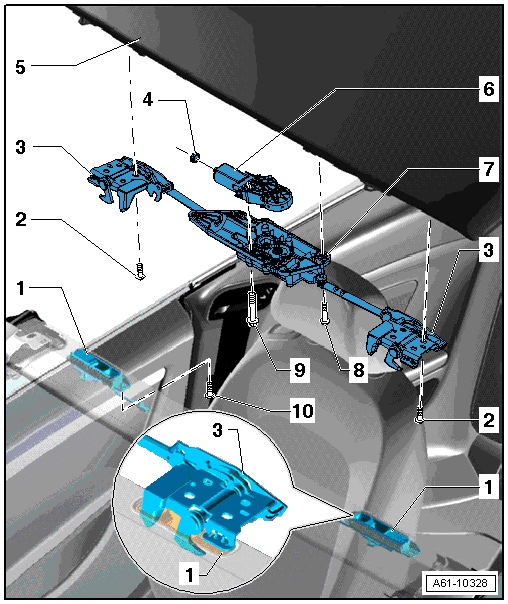

Overview - Convertible Top Latch: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- End Panel
- With Convertible Top -Closed- Switch -F411-, Right Convertible Top Closed Position Switch -F41-
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Replace
- Tightening sequence. Refer to Figure.
- Convertible Top Lock
- With Convertible Top Left Lock Switch -F169-, Convertible Top Latch -Open- Switch -F294-
- Are preset above the locking rods
- Removing and Installing. Refer to CONVERTIBLE TOP LOCK, REMOVING AND INSTALLING .
- Grommet
- Mounted to the back of the motor
- Convertible Top
- Convertible Top Locking Motor -V223-
- Removing and Installing. Refer to Convertible Top Locking Motor -V223-, REMOVING AND INSTALLING .
- Convertible Top Latch Motor
- Removing and Installing. Refer to CONVERTIBLE TOP LATCH MOTOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Quantity: 3
- Bolt
- 10 Nm
- Bolt
- 15 Nm
- Quantity: 3
