Hydraulic Unit (Hydraulic Pump), Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Turning Off Ignition And Pressing Convertible Top Operation Switch -E137- -1- For Approximately 5 Seconds

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the convertible top all the way.

-- With the ignition switched off, press the Power Top Operation Switch -E137- -1- for approximately five seconds.

The pressure in the hydraulic system will come down.

-- Follow the guidelines for clean working conditions. Refer to CLEAN WORKING CONDITIONS .

-- Remove the left luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

Fig 2: Hydraulic Pump, Tightening Specification

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -2, 3 and 5- from the bracket.

-- Remove the nut -1- and bolt -6- and then remove the bracket -4-.

-- Remove the hydraulic pump and the adhesive strips -3 and 4-.

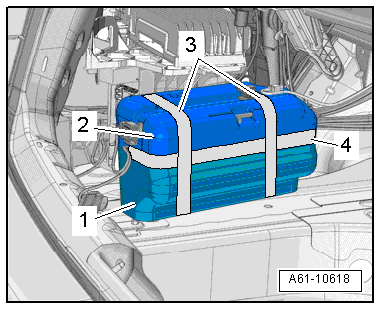

Fig 3: Removing Hydraulic Pump And Adhesive Strips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper section of noise insulation -2-.

-- Remove the hydraulic pump from the lower section of the noise insulation -1-.

-- If the reservoir and hydraulic pump are being replaced:

Hydraulic Line, Removing. Refer to HYDRAULIC LINE ON VALVE BLOCK, REMOVING AND INSTALLING .
