Hydraulic Pump Motor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the hydraulic pump. Refer to HYDRAULIC UNIT (HYDRAULIC PUMP), REMOVING AND INSTALLING .

NOTE:

Before removing, place a cloth or a collector tray under the pump to catch any hydraulic fluid that may leak out.

-- Open and close the fluid filler plug one time to equalize the pressure.

-- Hold the pump and the motor vertically for a few minutes to drain out all the hydraulic fluid into the fluid reservoir.

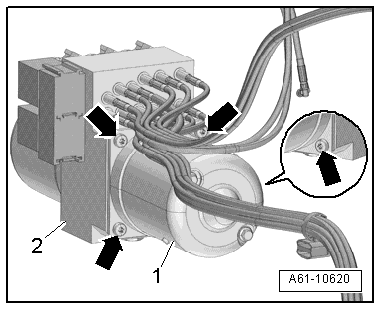

-- Remove the bolts -arrows-.

Fig 1: Removing Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the motor -1- by lightly turning it off of the valve block -2-.
