Hydraulic Pump Fluid Reservoir, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the hydraulic pump. Refer to HYDRAULIC UNIT (HYDRAULIC PUMP), REMOVING AND INSTALLING .

NOTE:

Before removing, place a cloth or a collector tray under the pump to catch any hydraulic fluid that may leak out.

-- Open and close the fluid filler plug one time to equalize the pressure.

-- Drain the fluid reservoir if necessary.

-- Hold the pump and fluid reservoir upright.

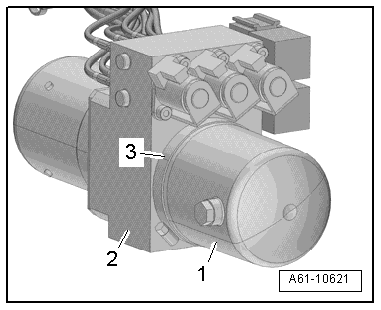

Fig 1: Identifying Hydraulic Pump Fluid Reservoir

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen and remove the hose clamp -3-.

-- Remove oil reservoir -1- by lightly turning it off of the valve block -2-.

Do not damage the oil screen -2- in the valve block -1- when doing so.

Fig 2: Do Not Damage Oil Screen -2- In Valve Block -1- When Doing So
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
