End Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the roof frame trim panel. Refer to ROOF TRIM PANELS .
-- Disconnect and free up the electrical connector and wire.

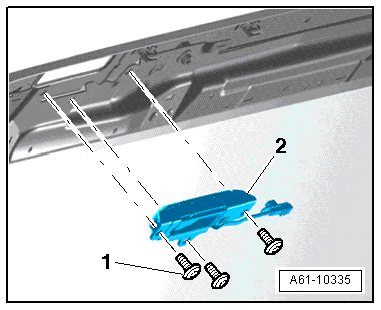

-- Remove the bolts -1- and then remove the end plate -2-.
