Convertible Top, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Perform Preparations For Battery Support Mode

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform the preliminary work for the battery support mode. Refer to BATTERY .

NOTE:

The hood can be opened manually using the key. Do not touch the lid for the opened convertible top compartment cover when doing this.

-- Activate the release lever for the rear seat backrest in the luggage compartment to release the rear seat backrest.

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

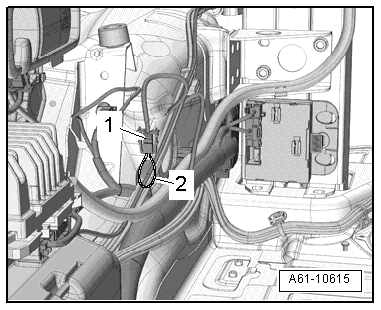

-- Bridge the wire -1- to the left and right convertible top compartment enclosure switches using a repair wire -2- from the :VAS1978B , since the cover will otherwise no longer able to be activated electronically.

WARNING:

Danger of personal injury if the convertible top compartment cover is not completely open.

When working on the cover, the convertible top compartment cover must move all the way to the rear into its end position.
Bleed the hydraulic pressure completely before starting any work on the convertible top system.
Reason: after approximately 6 minutes the convertible top control module will bleed the hydraulic pressure and the convertible top compartment cover or the cover could fall down uncontrolled.
All work must be performed with the hydraulic pressure bled.

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

Fig 2: Identifying Convertible Top Compartment Cover Locking Motor -V222-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the convertible top compartment cover in the "open" position against unintentional closing.

-- With the ignition switched off, press the Power Top Operation Switch -E137- -1- for approximately five seconds.

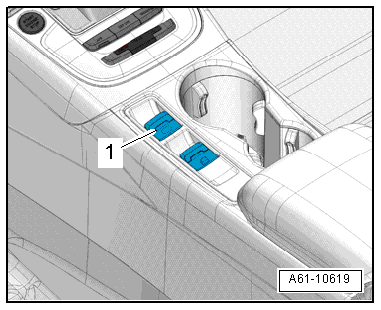

Fig 3: Turning Off Ignition And Pressing Convertible Top Operation Switch -E137- -1- For Approximately 5 Seconds

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The pressure in the hydraulic system will come down.

-- Disconnect the battery. Refer to BATTERY .

-- Remove the convertible top compartment. Refer to CONVERTIBLE TOP COMPARTMENT .

-- Remove the convertible top compartment side trim panel. Refer to CONVERTIBLE TOP COMPARTMENT .

-- Remove the convertible top compartment cover locking motor. Refer to Convertible Top Compartment Cover Locking Motor -V222-, REMOVING AND INSTALLING .

-- Remove the cover in the convertible top compartment. The convertible top compartment cover remains open.

-- Remove the side cushion. Refer to REAR SEATS .

-- Remove the side trim panels. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

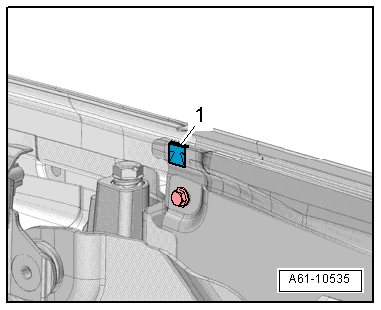

-- Remove the exterior/interior window shaft strip and remove the retaining clips -1-. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

Fig 4: Removing Exterior/Interior Window Shaft Strip And Remove Retaining Clips

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the hydraulic pump, the hydraulic lines remain connected. Refer to HYDRAULIC UNIT (HYDRAULIC PUMP), REMOVING AND INSTALLING .

Fig 5: Removing Hydraulic Pump, Hydraulic Lines Remain Connected

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

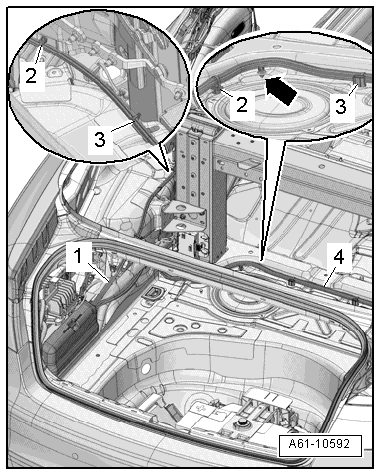

-- Free up the hydraulic lines -1 and 4-.

Dismount the hydraulic line bracket -3- from the threaded pin using a :80-200
Press the securing tabs together on the bracket -2- for the hydraulic lines -arrow- and remove them from the body mount.

-- Remove the hydraulic cylinder for the convertible top compartment cover. Refer to CONVERTIBLE TOP COMPARTMENT COVER HYDRAULIC CYLINDER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

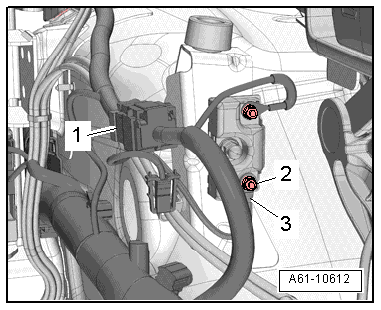

Fig 6: Disconnecting Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -2- and remove the Ground (GND) wire -3-.

-- Lower the convertible top into the convertible top compartment.

-- If equipped, remove the subwoofer. Refer to SOUND SYSTEM .

Fig 7: Removing Subwoofer, If Applicable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -3- and remove the GND wire -2- from the left main bearing -1-.

-- Remove the nut -3- and remove the GND wire -2- from the right main bearing -1-.

Fig 8: Removing Nut -3- And Remove Ground Wire -2- From The Right Main Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

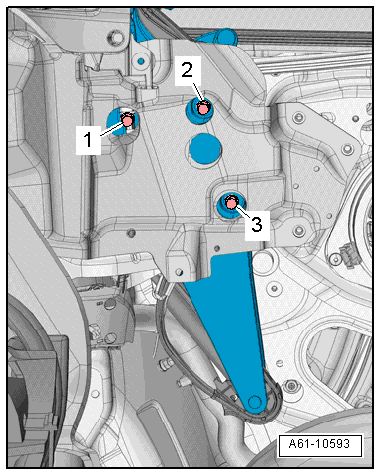

-- Remove the bolts -1, 2 and 3- on the left and right of the main bearing.

Fig 9: Removing Bolts -1, 2, 3- On Left And Right Of Main Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

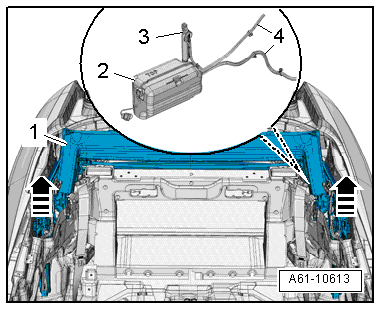

-- The convertible top -1- must carefully be lifted out of the vehicle with the help of 3 people -arrows-.

Fig 10: Convertible Top -1- Must Carefully Be Lifted Out Of Vehicle With Help Of 3 Technicians

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Two people hold the convertible top.
The third person removes the hydraulic pump -2-, the hydraulic cylinder -3-, and the hydraulic lines -4- from out of the opening in the convertible top compartment.

Clamp the Convertible Top into the :VAS6586

NOTE:

Lightly secure both mounting plates with mounting points -A and E- on the main bearing.

The arrows must point forward in the direction of travel.

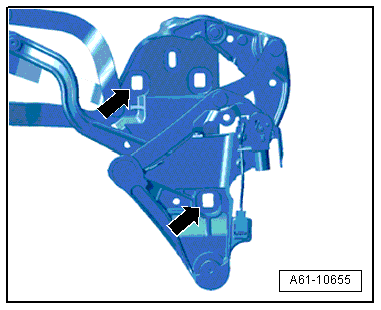

Fig 11: Identifying VAS 6586/1 And VAS 6886/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lightly secure the main bearing on the left and right with the bore holes shown in the figure -arrows- to the mounting plates via mounting points -C and D-.

Fig 12: NO CONTENT

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
