Convertible Top, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lay Convertible Top On A Soft Surface And Make Sure That Rear Window Is Laying On Top And Is Without Tension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening specification. Refer to OVERVIEW - CONVERTIBLE TOP and Wiring Diagram.

Install in reverse order of removal. Note the following:

-- Install the convertible top in the vehicle with the help of 3 technicians.

Two technicians hold the convertible top.
The third technician inserts the hydraulic pump, hydraulic cylinder, and the hydraulic lines.

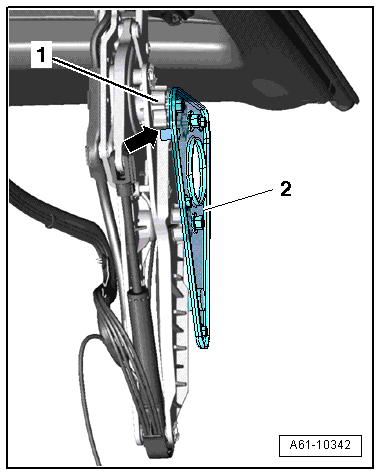

The convertible top must be attached to the main bearing using the upper stops -1- on the bolts -arrow- for the retaining plate -2-.

-- "Close" the convertible top and slightly lift up on both sides in the convertible top center.

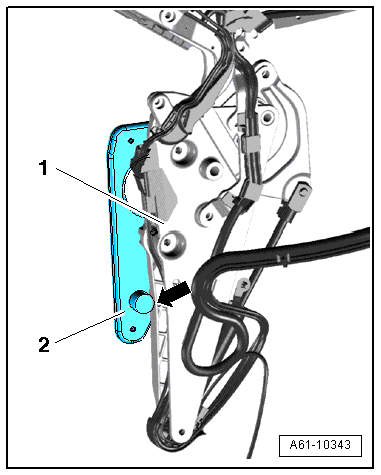

Fig 2: Closing Convertible Top And Slightly Lift Up On Both Sides In Convertible Top Center

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

By doing this the convertible top and the main bearing -1- is pushed against the bolt -arrow- in the plate -2-.

-- Tighten the bolts -1, 2 and 3- hand-tight.

Fig 3: Removing Bolts -1, 2, 3- On Left And Right Of Main Bearing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

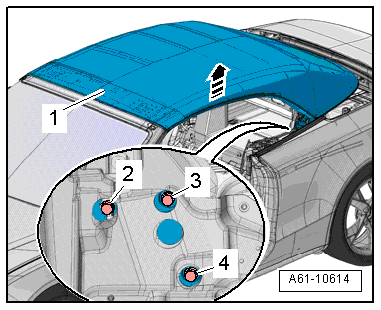

-- Lift the convertible top -1- in the center -arrow-.

Fig 4: Closing Convertible Top -1- And Lift It In The Center

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -3 and 4- to the specification.

-- Open the convertible top and tighten the bolt -2- to the tightening specification.
