Convertible Top Headliner, Removing And Installing: Removing

Fig 1: Always vacuum out metal shavings from openings left behind after drilling out the blind rivets to prevent noise from occurring in the moveable components i.e. rails.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front trim panel. Refer to FRONT TRIM PANEL, REMOVING AND INSTALLING .

-- Drill out the blind rivet -arrow- for the convertible top headliner mount from the front left and right rails and strike the rivet shaft.

-- Remove the bolts -1- from the retaining strip -2- for the convertible top cover/convertible top headliner -arrows-.

Fig 2: Removing Bolts -1- From Retaining Strip -2- For Convertible Top Cover/Convertible Top Headliner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive the convertible top upward until the front rail is vertical.

Fig 3: Removing Retaining Strip -1- To Side -Arrow- From Convertible Top Cover/Convertible Top Headliner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the retaining strip -1- to the side -arrow- from the convertible top cover/convertible top headliner.

-- Drill out the blind rivet -arrow a-, remove the diverting eye, and strike the rivet shaft.

Fig 4: Drilling Out Blind Rivet -Arrow A-, Removing Diverting Eye, And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the blind rivet on the left and right spring -1- and strike the rivet shaft.

-- Drill out the blind rivet -arrow b- from the bracket for the spring -2- and strike the rivet shaft.

-- Remove the nut -1- on "rail 1" and remove the bracket -2-.

Fig 5: Removing Nut -1- On "Rail 1" And Removing Bracket -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the blind rivet -arrow- on both sides, remove the diverting eye, and strike the rivet shaft.

-- Drill out the blind rivet -arrow- from the diverting eye -1- on the roof guide and strike the rivet shaft.

Fig 6: Drilling Out Blind Rivet -Arrow- From Diverting Eye -1- For Roof Guide And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the blind rivet -arrow- from the diverting eye -1- on the main guide and strike the rivet shaft.

Fig 7: Drilling Out Blind Rivet -Arrow- From Diverting Eye -1- On Main Guide And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the blind rivets -arrows- from the diverting eye and strike the rivet shaft.

Fig 8: Drilling Out Blind Rivets -Arrows- From Diverting Eye And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- on the convertible top headliner control bracket -1-.

Fig 9: Removing Screw -Arrow- On Convertible Top Headliner Control Bracket -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the blind rivet -arrow- from the spring -1- and strike the rivet shaft.

Fig 10: Drilling Out Blind Rivet -Arrow- From Spring -1- And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the convertible top headliner from the bracket starting by the straps on the outside and using pliers -arrow-.

Fig 11: Removing Convertible Top Headliner From Bracket Starting By Straps Outside And Using Pliers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The bracket is shown in the cut-out section in the illustration.

Fig 12: Bracket Is Shown In Cut-Out Section

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2 - Bracket

5 - Lower retaining strip on the bracket

6 - Convertible top headliner

7 - Upper retaining strip on the rear window

-- Remove the convertible top headliner profile -2- from the bracket -1-.

Fig 13: Removing Convertible Top Headliner Profile -2- From Bracket -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the convertible top headliner into the vehicle interior.

-- Drill out the blind rivets -arrow- from the diverting eye on "rail 2" and strike the rivet shaft.

Fig 14: Drilling Out Blind Rivets -Arrow- From Diverting Eye On "Rail 2" And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drill out the blind rivets -arrow- from the diverting eye on "rail 4" and strike the rivet shaft.

Fig 15: Drilling Out Blind Rivets -Arrow- From Diverting Eye On "Rail 4" And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rod -arrow- from the loop in the headliner.

Fig 16: Removing Rod -Arrow- From Loop In Convertible Top Headliner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- This disengages the convertible top headliner straps -1-.

-- For vehicles with an "Acoustic cover", Remove the rear interior lamp -2-. Refer to CONTROLS .

Fig 17: Removing Rear Interior Lamp -2- For Vehicles With "Acoustic Cover"

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the tensioning strap -3- from the frame -1- and free it up from the convertible top cover.

-- Use scissors to disconnect and remove the convertible top headliner.

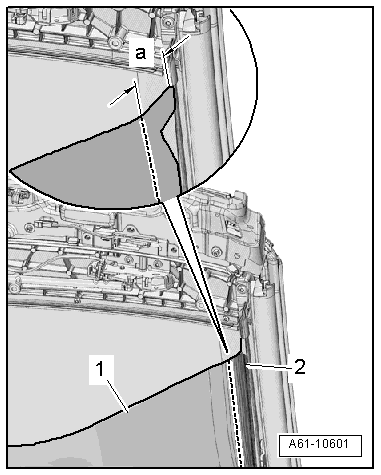

Fig 18: Useing Scissors To Disconnect And Remove Convertible Top Headliner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Cut the convertible top headliner -1- at the distance -a- in a straight line from the outer edge -2- towards the rear window up to the main bearing.
• Dimension -a- = 5 cm.
• Do not cut the adhesive tape on "rails 1 and 2".

-- Drill out the blind rivets -arrows- from the fold assist -2-, from the mounting strap -1- and strike the rivet shaft.

Fig 19: Drilling Out Blind Rivets -Arrows- From Fold Assist -2-, From Mounting Strap -1- And Strike Rivet Shaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fold up the convertible top headliner -1- and remove it to the right from the convertible top frame -arrow-.

Fig 20: Folding Up Convertible Top Headliner -1- And Remove It To Right From Convertible Top Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Remove the protective strip for the convertible top headliner from the groove for "rail 1 and 2".
