Convertible Top Drive Hydraulic Cylinder, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Convertible Top Compartment Cover Locking Motor -V222-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Follow the guidelines for clean working conditions. Refer to CLEAN WORKING CONDITIONS .

-- Remove the side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Left: If equipped, remove the subwoofer. Refer to SOUND SYSTEM .

-- Close the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

-- Support the convertible top with a suitable wood stick.

-- With the ignition switched off, press the Power Top Operation Switch -E137- -1- for approximately five seconds.

Fig 2: Turning Off Ignition And Pressing Convertible Top Operation Switch -E137- -1- For Approximately 5 Seconds

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The pressure in the hydraulic system will come down.

-- Right: Disconnect the connector -2- from the Convertible Top Open Position Switch -F171-.

Fig 3: Disconnecting Connector -2- From Convertible Top Open Position Switch -F171-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

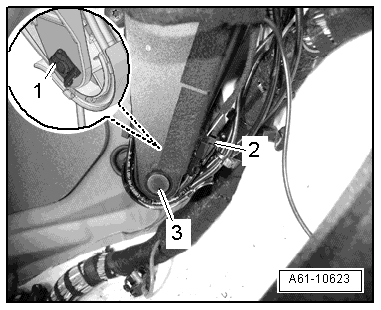

-- Push the clip down -1- and remove the bolt -3- from the convertible top main bearing on the opposite side.

-- Disengage the hydraulic cylinder from the main bearing.

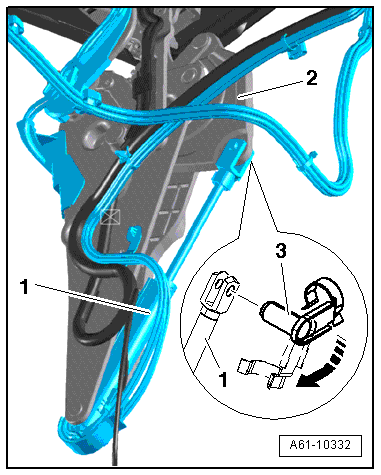

-- Release the clip on the hydraulic cylinder -1- with a screwdriver and remove the bolt -3- to the side.

Fig 4: Releasing Clip On Hydraulic Cylinder -1- With A Screwdriver And Remove Bolt -3- To Side

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut the cable tie from the main bearing.

-- Remove the hydraulic cylinder upward out of the convertible top main bearing.

-- If the hydraulic cylinder is being replaced:

Hydraulic Line, Removing. Refer to HYDRAULIC LINE ON CYLINDER, REMOVING AND INSTALLING .
Right: Remove the convertible top open position switch.

-- If one hydraulic line is being replaced:

Remove the hydraulic line from the hydraulic cylinder. Refer to HYDRAULIC LINE ON CYLINDER, REMOVING AND INSTALLING .
Remove the hydraulic line from the valve block. Refer to HYDRAULIC LINE ON VALVE BLOCK, REMOVING AND INSTALLING .
