Convertible Top Control Module -J256-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Comfort System Central Control Module Retaining Frame, Tightening Specifications

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the right luggage compartment side trim panel.

-- Remove the nuts -1 through 3- and bolt -5-.

-- Disengage the frame -4- at the threaded pins and move it as far as possible toward the luggage compartment side trim panel.

-- Open the tabs upward -arrows- and remove the Convertible Top Control Module -J256- -2- from the frame -3-.

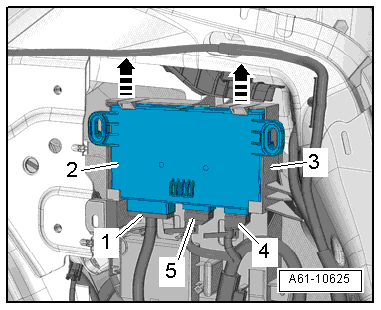

Fig 2: Identifing Convertible Top Control Module -J256-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors -1, 4 and 5-.
