Center Convertible Top Seal, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Convertible Top Compartment Cover Locking Motor -V222-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the convertible top until the displayed position of the top and the convertible top compartment cover is reached.

-- With the ignition switched off, press the Power Top Operation Switch -E137- -1- for approximately five seconds.

Fig 2: Turning Off Ignition And Pressing Convertible Top Operation Switch -E137- -1- For Approximately 5 Seconds

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The pressure in the hydraulic system will come down.

-- Bring the convertible top into the illustrated position.

Fig 3: Bringing Convertible Top Into Illustrated Position

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

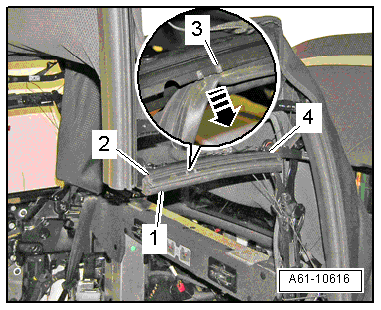

-- Remove the upper section -2- of the center seal from the retaining strip -4-.

-- Remove the lower section -1- of the exterior center seal starting on the sides and finally from out of the positioning clips -3- -arrow-.
