Vanity Mirror Illumination Bulb -L31-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

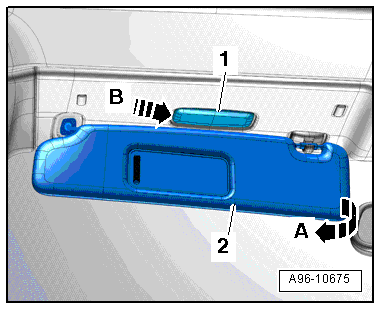

Fig 1: Removing Vanity Mirror Illumination -L31-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the sun visor -2- to the outside -arrow A-.

-- Pry out the vanity mirror illumination -1- at the cut-out -arrow B- using a flat-blade screwdriver.

-- Disconnect the connector.

-- To replace the bulb, remove the cover -arrow-.

Fig 2: Bulb Holder And Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bulb from the socket on the rear side of the vanity mirror lamp.
