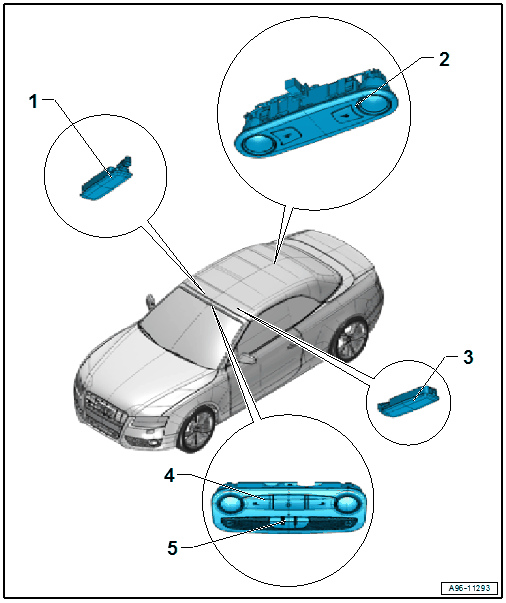

Overview - Roof Trim Panel Lamps
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Right Vanity Mirror Illumination
- Vanity Mirror Illumination Bulb -L31-
- 12 V, 5 W
- Removing and installing. Refer to VANITY MIRROR ILLUMINATION BULB -L31-, REMOVING AND INSTALLING .
- Rear Interior Lamp
- Left Rear Interior Lamp -W47-
- Right Rear Interior Lamp -W48-
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
- Left Vanity Mirror Illumination
- Vanity Mirror Illumination Bulb -L31-
- 12 V, 5 W
- Removing and installing. Refer to Garage Door Opener Control Module -J530-, REMOVING AND INSTALLING .
- Front Interior Lamp/Reading Lamp
- Front Passenger Reading Lamp -W13-
- Driver Reading Lamp -W19-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Reading lamp, removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP LED, REPLACING
