Overview - Front Door Lamps

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

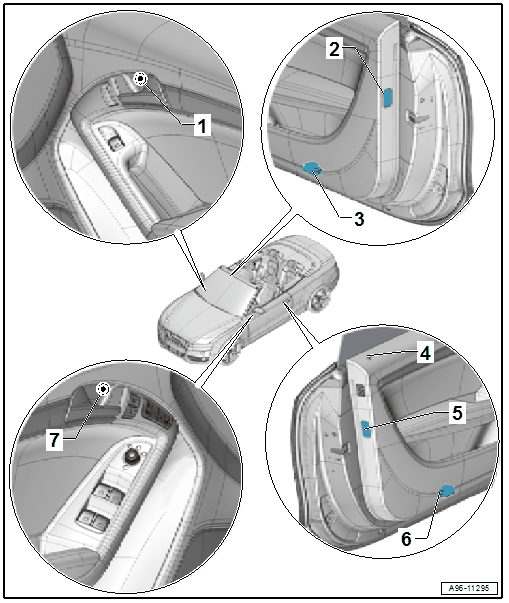

Fig 1: Locating Front Door Lamps
GWWA96-11295Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Passenger Door Opener Illumination Bulb -L109-
  2. Front Passenger Door Warning Lamp -W36-
  3. Right Front Entry Lamp -W32-
  4. Central Locking -SAFE- Indicator Lamp -K133-
  5. Driver Door Warning Lamp -W30-
  6. Left Front Entry Lamp -W31-
  7. Driver Door Opener Illumination Bulb -L108-
