Driver/Front Passenger Door Opener Illumination Bulb -L108- / -L109-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

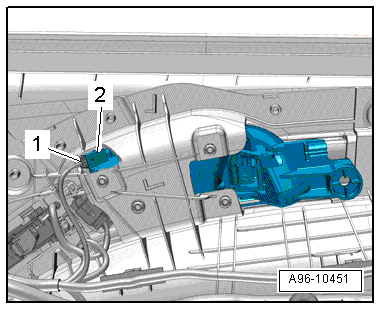

Fig 1: Door Opener Illumination Bulb -L108- / -L109-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANELS .

-- Disconnect the connector -1-.

-- Turn the bulb socket -2- to the left and remove it at the door opener.
