Central Locking -Safe- Indicator Lamp -K133-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

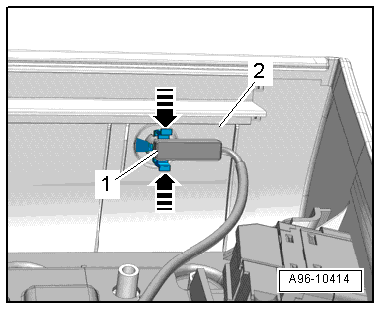

Fig 1: Central Locking -Safe- Indicator Lamp -K133-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn off the ignition and remove the key.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANELS .

-- Release the retaining clips -arrows-.

-- Remove the central locking LED -1- down out of the door trim -2-.
