Rear Interior/Reading Lamp, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

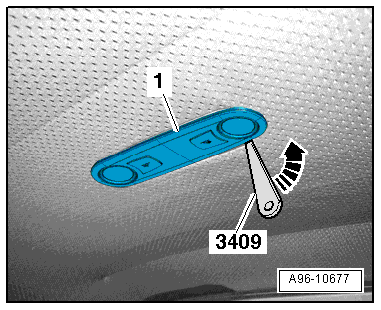

Fig 1: Prying Out Rear Interior/Reading Lamp -1- Out Of Roof Cut Out -Arrow- Using 3409
GWWA96-10677Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully pry off interior/reading light -1- out of roof cutout -arrow- using Trim Removal Wedge:3409  .

-- Disconnect the connector.
