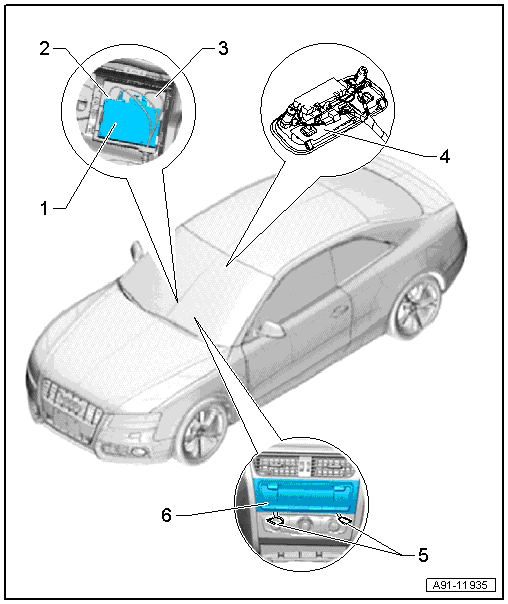

Component Location Overview (USA)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Telephone Transceiver -R36- (CAN)
- Bluetooth Hand-Free Calling Connector Assignment (CAN), refer to BLUETOOTH HAND-FREE CALLING CONNECTOR ASSIGNMENT, CAN .
- Removing and installing, refer to TELEPHONE TRANSCEIVER, REMOVING AND INSTALLING
- Bluetooth Antenna -R152-
- E-Box
- Microphone Unit in Front Roof Module -R164-
- Overview, refer to OVERVIEW - MICROPHONE UNIT .
- Removing and installing, refer to MICROPHONE UNIT IN FRONT ROOF MODULE -R164-, REMOVING AND INSTALLING
- Radio Removal Tool :T10057
- Information Electronics Control Module 1 -J794- (MMI)
- MMI Bluetooth Hands-Free Setup Connectors, refer to BLUETOOTH HAND-FREE CALLING CONNECTOR ASSIGNMENT, MMI .
- Removing and installing, refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING
