TV Card Reader, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Open the left storage compartment in the luggage compartment.
-- Remove the SIM card from the TV Card Reader -R204-.

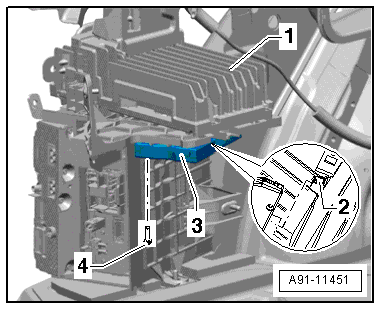

The TV Card Reader -R204- -3- is secured on the rack -1- with a bolt -4- and slides into a tab -2- on the other side.
-- Remove the bolt -4- from the TV Card Reader -R204- -3- and remove the TV Card Reader -R204- -3- from the tab -2-.
-- Disconnect and remove the connection from the TV Card Reader -R204- -3-.
