TV System Component Location Overview, Japan
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

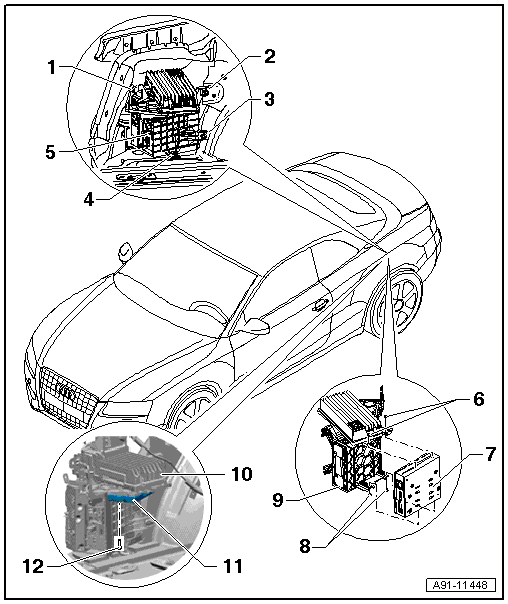

- Nut
- 3.5 Nm
- Nut
- 3.5 Nm
- Nut
- 3.5 Nm
- Nut
- 3.5 Nm
- Infotainment Rack
- Bolt
- Quantity: 2
- 2 Nm
- TV Tuner -R78-
- Hybrid connector assignment, refer to TV TUNER -R78- CONNECTOR ASSIGNMENT, HYBRID, JAPAN .
- Connector assignment (DTV), refer to DIGITAL TV TUNER CONNECTOR ASSIGNMENT, JAPAN FROM MY 2012 .
- Removing and Installing, Hybrid, refer to TV Tuner -R78-, REMOVING AND INSTALLING, HYBRID .
- Removing and Installing, (through MY 2012), refer to DIGITAL TV TUNER, REMOVING AND INSTALLING, FROM MY 2012 .
- Bolt
- Quantity: 2
- 2 Nm
- Infotainment Rack
- Infotainment Rack
- TV Card Reader -R204-
- Removing and installing, refer to TV CARD READER, REMOVING AND INSTALLING
- Bolt
- 3 Nm
