Subwoofer In Rear Shelf -R157-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove The Left Side Trim Panel, refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .

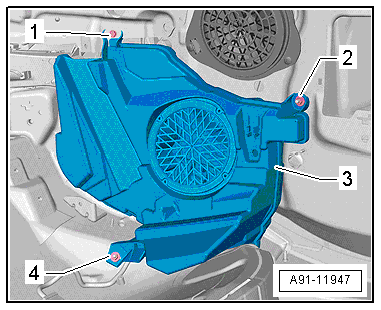

-- Remove the bolt -1- and the nuts -2- and -4- from the Subwoofer On Rear Shelf -R157- -3-.
-- Unlock and disconnect the connector and then remove the Subwoofer in Rear Shelf -R157- -3-.
