Rearview Camera System Control Module -J772-, Removing And Installing: Removing

-- Open the right storage compartment in the luggage compartment.

The Rearview Camera System Control Module -J772- -3- is clipped into the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To remove, the Comfort System Central Control Module -J393- must be removed first with the bracket. Then the bracket -1- with the Rearview Camera System Control Module -J772- -3-.

-- Disengage the retainer -arrow- and remove the Parking Aid Control Module -J446- -1- from the retaining frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the Parking Aid Control Module -J446- to the side with the wires still connected -2 through 4-.

-- Remove the nuts -1 through 3- and the bolt -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the retaining frame -4- at the threaded pin and move it to the side toward the luggage compartment.

-- Remove nuts -1- and -3- on bracket -2- and swivel the bracket -2- to the side in the direction of the luggage compartment.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock and disconnect the connectors -4- and -5- from the Rearview Camera System Control Module -J772-.

-- Remove the bracket with the Rearview Camera System Control Module -J772- from the luggage compartment.

-- Press the tab -2- on the bracket -1- in the direction of the -arrow- and remove the Rearview Camera System Control Module -J772- -3- from the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the right storage compartment in the luggage compartment.

The Rearview Camera System Control Module -J772- -1- is secured -arrows- to the rear bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

To remove, the Comfort System Central Control Module -J393- must be removed first with the bracket. Then the bracket -2- with the Rearview Camera System Control Module -J772- -3-.

-- Disengage the retainer -arrow- and remove the Parking Aid Control Module -J446- -1- from the retaining frame.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Move the Parking Aid Control Module -J446- to the side with the wires still connected -2 through 4-.

-- Remove the nuts -1 through 3- and the bolt -5-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the retaining frame -4- at the threaded pin and move it to the side toward the luggage compartment.

-- Unlock and disconnect the connectors -3- and -2- from the Rearview Camera System Control Module -J772-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

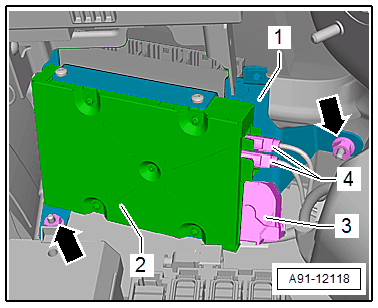

-- Remove the bolts -arrows-.

-- Swivel the bracket -1- with the Rearview Camera System Control Module -J772- -2- into the luggage compartment.

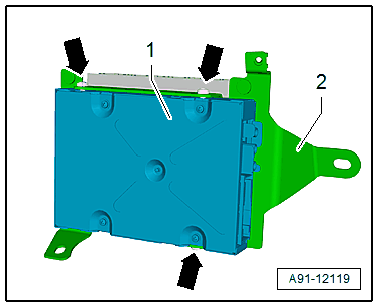

-- Remove the bolts -arrows- on the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Rearview Camera System Control Module -J772- -1- from the bracket -2-.
