Component Location Overview - Rearview Camera System
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

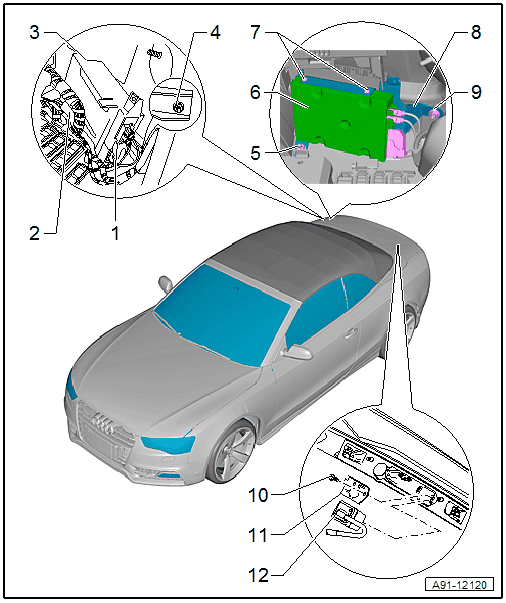

- Rearview Camera System Control Module -J772-
- Connector assignment, refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772- CONNECTORS .
- Removing and installing, refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772-, REMOVING AND INSTALLING
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Nut
- 3 Nm
- Bracket
- Nut
- 3 Nm
- Nut
- 3 Nm
- Rearview Camera System Control Module -J772-, RS 5 Cabriolet
- Connector assignment, refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772- CONNECTORS .
- Removing and installing, refer to REARVIEW CAMERA SYSTEM CONTROL MODULE -J772-, REMOVING AND INSTALLING
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Bolt
- 2 Nm
- Quantity: 3
- Retainer
RS 5 Cabriolet
- Nut
- 3 Nm
- Bolt
- 2 Nm
- Bracket
- Rearview Camera -R189-
- Removing and installing, refer to REARVIEW CAMERA -R189-, REMOVING AND INSTALLING
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
