Overview - Door Seals

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

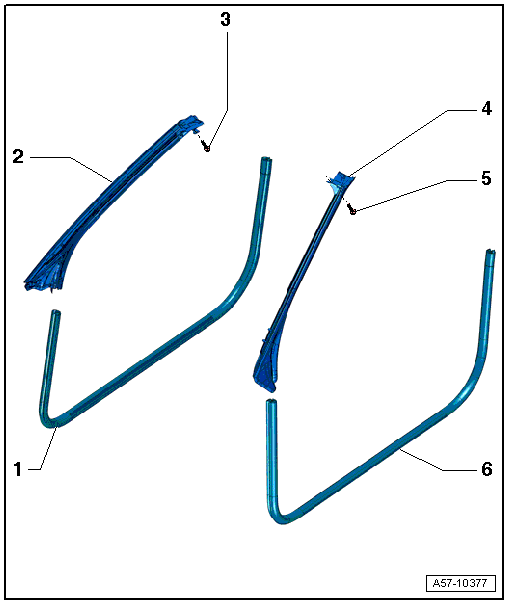

Fig 1: Identifying Inner Door Seal And A-Pillar Door Seal Overview

Courtesy of AUDI OF AMERICA, LLC

Right Inner Door Seal
- Removing and installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
Right A-Pillar Door Seal
- Removing and installing. Refer to A-PILLAR DOOR SEAL, REMOVING AND INSTALLING .
Bolt
- 2 Nm.
Left A-Pillar Door Seal
- Removing and installing. Refer to A-PILLAR DOOR SEAL, REMOVING AND INSTALLING .
Bolt
- 2 Nm.
Left Inner Door Seal
- Removing and installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
