Overview - Window Regulator

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

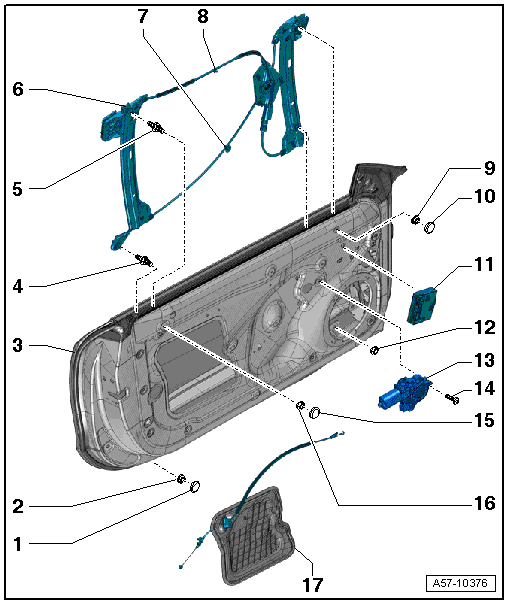

Fig 1: Identifying Window Regulator Motor And Window Regulator Overview

Courtesy of AUDI OF AMERICA, LLC

Sealing Plugs
Nut
- 9 Nm
Door
Lower Double-Bolt
- For adjusting the window regulator
Upper Double Bolt
- For adjusting the window regulator
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
- Adjusting. Refer to FRONT DOOR WINDOW, ADJUSTING .
Clip
Clip
Nut
- 9 Nm
Sealing Plugs
Door Control Module
- Overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
Nut
- 9 Nm
Window Regulator Motor
- Driver Window Regulator Motor -V147-
- Front Passenger Window Regulator Motor -V148-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
- Quantity: 3
Sealing Plugs
Nut
- 9 Nm
Cover
- Clipped into the door
- With the cable for the interior door mechanism
- Removing and installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
